◾Data integration

Possible types of integrations

Smartico can be integrated with your product in 3 possible ways:

• By providing access to a replica of your DB with a set of views that will represent the need for synchronization data, The Smartico system will connect to your DB and track changes in the views.

• By providing access to your event streaming platform, e.g. Kafka or RabbitMQ. With documentation related to the needed events and data.

• By sending server-to-server events to Smartico REST API about end-user actions and updates in the end-user profile.

In all types of integrations, your data is encrypted during transfer, and PII-sensitive properties like email, phone numbers, etc, are encrypted and stored in the isolated DB.

Which type of integration is better?

• Integration on replica DB is the fastest and easiest way, as it doesn't require any resources from your R&D., except defining SQL views to access data.

• Kafka is good when it's already incorporated in your organisation.

• REST API is good when you have resources in your R&D team and want to have full control of the data flow. Important that from our expirience its the most time consuming approach for integration, as your team will need to understand semantic of the API and how to structure data properly

Events and user profile properties

Depending on your product type, you will need different sets of events and user profile properties to be sent to the Smartico system.

Based on our experience, we have defined events and user profile properties that are most common for the business verticals like Casino, Sports, Lotter, and Trading - you will find them in the integration documents below.

The properties in the documents result from our attempt to unify all the integrations we faced so far. While they cover the majority of possible Marketing and Gamification needs, there is always a need to define custom data entities for your product. Custom events and user profile properties can be added by your request either during initial integration or later when you face new use cases.

Important

The data source should provide deduplication of the events in case of REST API/Kafka type of integration and table records in case of Replica-based integration.

This means that all "transactional" data should be represented only once and be immutable. All user profile updates should be provided only if there are changes at least in one property of the user profile.

All types of events/records should have an "update date" that represents the actual date of the business event.

Not following this approach may lead to inconsistent performance of the system and wrong execution of the campaigns, missions, tournaments, and automation rules.

Replica DB

To support SQL replica-based integration with Smartico, the integrated platform should provide a replication database with "views" listed below. Smartico will use those views to track the changes in the data and send them to the Smartico CRM system as events. There are two main types of "views" that should be provided.

Users view

Users view should list all users in the integrated product and should have indexed column dt_update The column should be updated with the current date/time in the UTC timezone whenever any of the user profile fields are changed. Smartico will query this view to get user profiles that have been updated since the last query.

Example of SQL query

SELECT * FROM user_profile WHERE dt_update > previous_query_dt_utc

Note: In most systems, the data about the user is distributed among multiple tables, where every table has its own dt_update field.

Building a view that presents the join of all such tables and has an efficient index on dt_update could be quite problematic; in such case, you can expose to us all such tables, and each table will be tracked independently.

Users view fields

The following fields are required and should be exposed from the user's view.

Column name	Data type	Description
dt_update	timestamp	Column should be updated with current date/time in UTC timezone whenever any of the user profile fields are changed. Indexed, not nullable
ext_brand_id	string or int	ID of the brand in integrated product
user_ext_id	string or int	Unique identified of the user
core_account_status	string	Status of account in the external system. If the account is not ACTIVE, Smartico system will not execute any marketing activities for such an account. The default value for a newly created account is Active.Possible values: ACTIVE, BLOCKED, SUSPENDED, BANNED, SELF_EXCLUDED, DEACTIVATED, PENDING, LOCKED, APPROVED Use the condition inside of the segment used in marketing campaigns to directly exclude accounts that are not active in order to not target them
core_registration_date	timestamp	The date/time when user is registeredThe passed value should be a timestamp in UTC with milliseconds precision. The date value should be in the past. One of the most important properties, not only you can segment based on the registration date, for example if you want to run a campaign only for ''veteran'' players who registered more than 2 years ago, but we also use the registration date as the condition to trigger to the ''profile ready''
core_user_language	string	Language of the user in ISO 639-1 format (EN,BG,IT)Possible values: EN, SV, DE, FR, FI, NB, IT, ES, BG, KO... Can be used in content variations for communications, based on the language of the player you'll be able to send different communication assets
core_wallet_currency	string	Currency of the user wallet. Note that once set this value cannot be changed for user. Has multiple uses, can be used in tag to replace the value {{state.core_wallet_currency}} when sending communications about deposit and withdrawals as well as bonus prizes in mini-games for example

The following columns are optional, but we found them useful for marketing purposes in most of the integrated systems.

Column name	Data type	Description	Use case
core_username	string	Username or nickname	Can be used in the greetings as tag like "Hello {{state.core_username}}" Also used in the leaderboards in the gamification
user_birthdate	timestamp	Birth date of userThe passed value should be a timestamp in UTC with milliseconds precision. The date value should be in the past.	Can be used to build birthday campaign for example: If birth date is 'less or equal than 2 days' > send a reminder email saying that if they log in on their birthday they will receive a bonus if birth date is 'today' > trigger a campaign on the log in to give a birthday bonus to the player with a personalized popup
user_country	string	2 symbols, user registration country, e.g. UA	If the operator is targeting multiple countries it can be used to segment players based on their countries and build country specific campaigns
user_email	string	In case Smartico Data Guard is setup, the mail is encrypted and cannot be accessed from Smartico CRM. In case mail is submitted via API, it should be encrypted on Integrated system	Used in communication over Email
user_first_name	string	free text	Can be used as a dynamic tag in communications in order to refer to the user with their first name {{state.user_first_name}}
user_last_name	string	free text	can be used as a dynamic tag in communications in order to refer to the user with their first name {{state.user_first_name}}
user_phone	string	In case phone is submitted via API, it should be encrypted on Integrated system	Used in communication over SMS
core_affiliate_id	numeric	Affiliate ID from affiliate system (in case it's numeric value)	Users register using a specific Affiliate ID/link containing ID and this ID is used to separate players from affiliation and organic registration, example value 4322
core_affiliate_str	string	Affiliate ID from affiliate system	Similar to the "ID" value, but in case your affiliate identified is not numeric, but string, like "john24"
core_is_email_disabled_by_platform	boolean	User is opted out from mail communication on the Product side	If you have communication preferences on the website where the player can unsubscribe to marketing communications, you can automatically exclude from marketing campaign all players who opted out in order to not even attempt sending a communication
core_is_sms_disabled_by_platform	boolean	User is opted out from sms communication on the Product side	If you have communication preferences on the website where the player can unsubscribe to marketing communications, you can automatically exclude from marketing campaign all players who opted out in order to not even attempt sending a communication
core_user_gender	string	Possible values: MALE, FEMALE, F, M, UNKNOWN	Segment based on the gender or can be added in content variation setting to personalize pronouns in communication assets based on the player's gender
core_kyc_status	string	Status of the user in KYC process	Run a campaign on players who didn't complete their KYC process giving them a bonus when they verify their documents

Transactional views

Transactional views that represent deposits, casino/sports bets, etc., are "transactional", which means that every record in the view should be immutable and should have an indexed "dt_finalized" column.

Smartico will use this "dt_finalized" column to find new records and send them to the Smartico CRM system.

SELECT * FROM deposits WHERE dt_finalized > previous_max_dt_finalized

Please note that every transaction should be and don't change once the transaction is made visible in the view. If this is not preserved same transaction will be reported multiple times to the Smartico CRM system.

In a lot of the systems transaction tables also have always incrementing unique IDs, if it is such, it can be also used by integration instead of the dt_finalized field.

Example of SQL query

SELECT * FROM deposits WHERE id > previous_max_deposit_id

All views (users and transactional) should also have two columns that uniquely identify users in the system - ext_brand_id and user_ext_id. Both columns could be the type of string or integer. Example of user identification: ext_brand_id = "SuperCasino", user_ext_id = "john77" or ext_brand_id = 5 and user_ext_id = 123

Deposits view

The view should represent final deposits, there shouldn't be attempts, failed, or canceled deposits.

Rows in the view should be immutable

Required fields

Column name	Data type	Description
dt_finalized	timestamp	Column should be updated with current date/time in UTC timezone whenever the transaction is finilized (not goin to change in future). Once transaction is visible in the view it should not be changed(!).
ext_brand_id	string or int	ID of the brand in integrated product
user_ext_id	string or int	Unique identified of the user
transaction_id	string	Transaction ID - unique transaction ID of the operation. Can be skipped, If the table has unique ID as listed above
transaction_date	timestamp	The date of deposit. The passed value should be a timestamp in UTC with milliseconds precision.
deposit_amount	numeric	Deposit amount in the player currency

Optional fields

Column name	Data type	Description
bonus_balance	numeric	Bonus money balance in the user currency right after deposit was done
real_balance	numeric	Real money balance in the user currency right after deposit was done
total_balance	numeric	Total money balance in the user currency right after deposit was done (real + bonus)
deposit_code	string	If user used some deposit or vaucher code for the bonus
deposit_method	string	Name of used deposit method, e.g. PaySafe

Casino Bets & wins

Casino bets & wins can be presented in one table with a column indicating if the transaction of type bet or of type win. Or these transactions can be presented in separate tables.

Fields with "*" are needed only for "win" transactions

Required fields

Column name	Data type	Description
dt (or id)	timestamp or int	Column should be updated with current date/time in UTC timezone whenever the transaction became visible through the view. Once transaction is visible in the view it should not be changed(!). Or instead of date, there should be incremental ID
ext_brand_id	string or int	ID of the brand in integrated product
user_ext_id	string or int	Unique identified of the user
bet_id	string	Unique transaction ID of the operation. Can be skipped, If the table has unique ID as listed above
bet_date	timestamp	The date of bet. The passed value should be a timestamp in UTC with milliseconds precision.
bet_amount	numeric	Total bet amount (real + bonus). In the user currency
win_amount*	numeric	Total win amount (real + bonus). In the user currency
game_name	string	Name of the game. E.g. "Golden Slot 2"
game_id	string	The unique ID of the game

Optional fields

Column name	Data type	Description
bet_amount_real	numeric	Real money part of bet. In user currency
bet_amount_bonus	numeric	Bonus money part of bet. In user currency
win_amount_real*	numeric	Real money part of win. In user currency
win_amount_bonus*	numeric	Bonus money part of win. In user currency
game_category	string	E.g. "Slots"
game_category_id	string	The unique ID of the game's category
game_provider	string	E.g. "Pragmatic"
game_provider_id	string	The unique ID of the game's provider

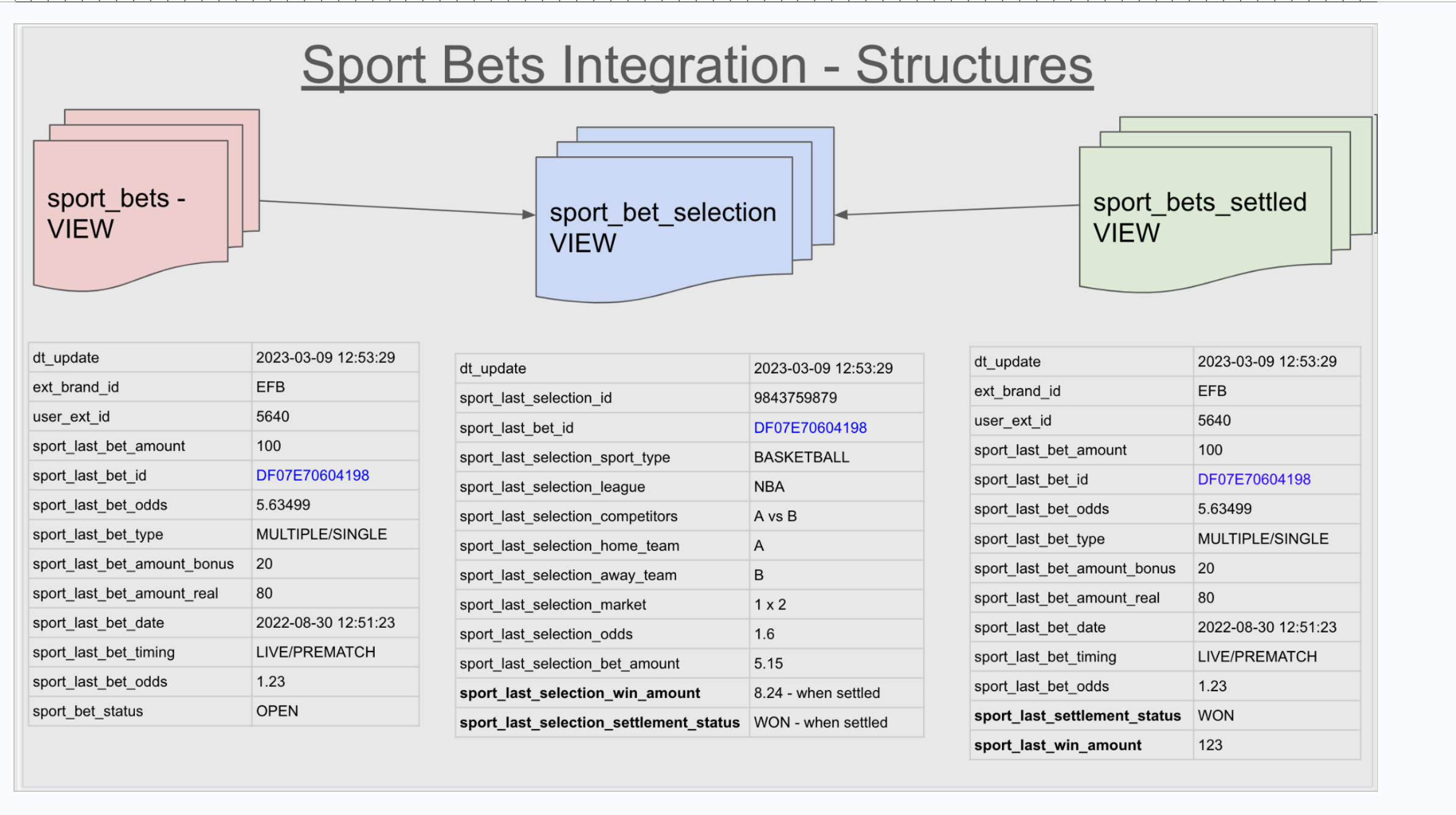

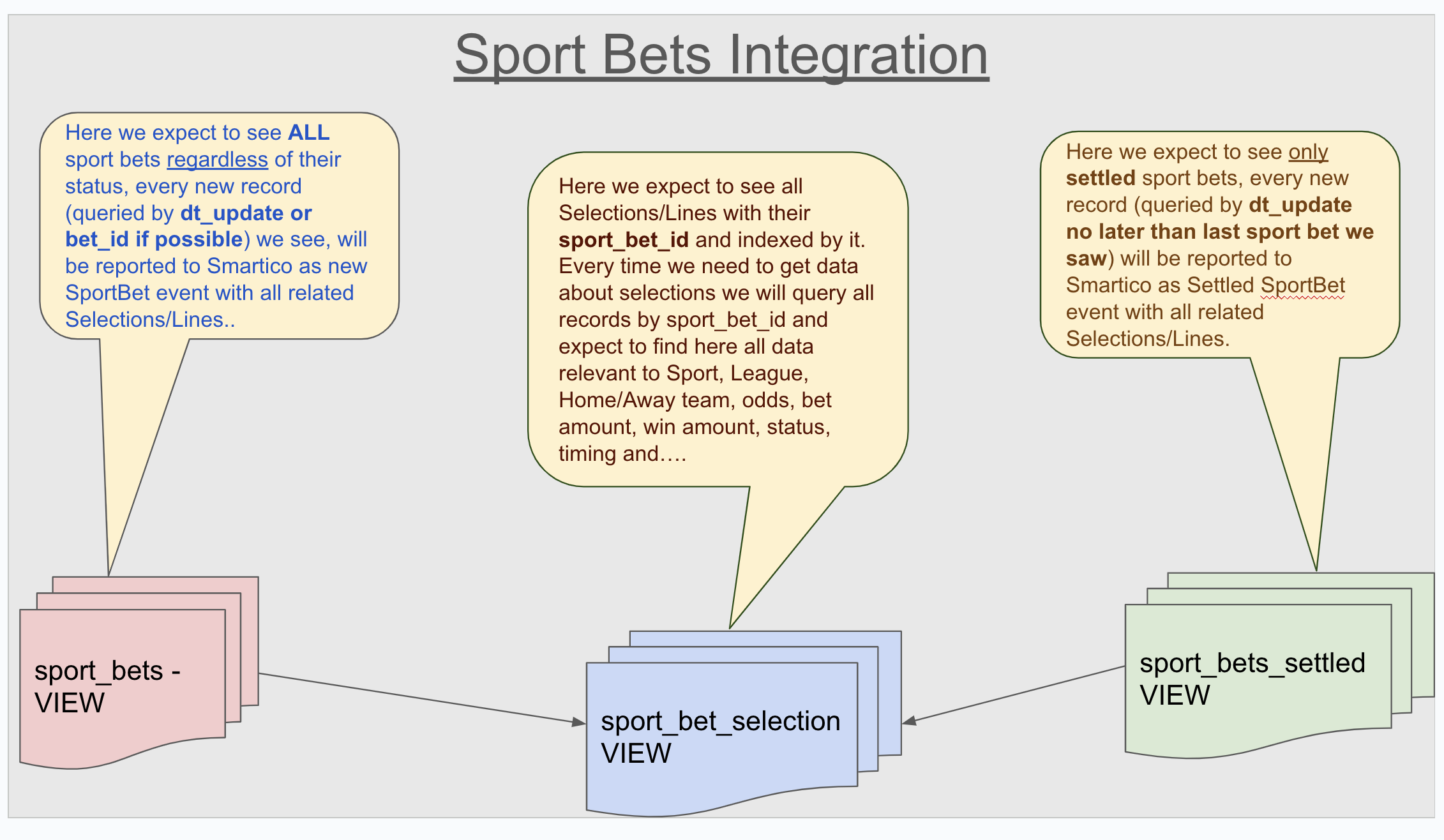

Sport bets, selections and settlements

Smartico has built-in support for other types of transactions, such as failed bets, issued bonuses, requested withdrawals, etc, as well as for other verticals like Sports betting, FinTech, Retail, etc.

For example, for the "Sport" domain we are indicating 4 types of transactions:

• Sport bet placement (sport_bet_open)

• Sport selections placement (sport_bet_selection_open)

• Sport bet settlement (sport_bet_settled)

• Sport selections settlement (sport_bet_selection_settled)

The idea is that

1. the sport_bet_open event is sent when the overall bet is placed. Think of it as the main container for the bet.

2. Then, the sport_bet_selection_open event is for each individual leg or selection within that bet. So, for something like a combo bet or a parlay (a 'Multi'), you'd send the one sport_bet_open event for the whole bet and then a separate sport_bet_selection_open event for each selection that makes up that combo. It's not just for combo bets, though. Any bet structure where there are distinct selections within the main bet would follow this pattern.

3. Same goes for sport_bet_settled , it need to be send when all "selections" inside the bet are resolved.

4. Following sport_bet_settled you will need to send sport_bet_selection_settled for each selection inside the bet

The DB structure that represents these types of transactions may vary on different providers. What we have found as the most common concept is presented in the diagrams below

Kafka or RabbitMQ

For streaming solution Operator will need to provide connection details to their broker.

After that Smartico is building adaptor to get events from the broker and re-format to Smartico events according to required by Smartico semantic.

Usually, we see 3 topics that are covering the main part of integration.

User profile - information about user profiles, provided whenever user is registered or there are any updated in the profile.

Example of event structure

{
  "dt_update": 1678886400000, // Example: March 15, 2023 12:00:00 PM UTC in milliseconds
  "ext_brand_id": "YourBrandId", // could be int, string, uuid
  "user_ext_id": "f0e6e2e1-4797-4b75-9d62-ad964a4f05af", // could be int, string, uuid
  "core_account_status": "ACTIVE", // see an explanation above
  "core_registration_date": 1640995200000, // required field! Example: January 1, 2022 12:00:00 AM UTC
  "core_user_language": "EN", // 2 symbols ISO
  "core_wallet_currency": "EUR", // 3 symbols ISO
  "core_username": "JohnDoe77", // optional
  "user_birthdate": 788918400000, // Example: January 1, 1995 12:00:00 AM UTC, optional
  "user_country": "US", // 2 symbols ISO
  "user_email": "[e-mail]", // will be encrypted on arrival
  "user_first_name": "John", // optional
  "user_last_name": "Doe", // optional
  "user_phone": "[phone]", // will be normalized using user_country to align from natial format and encrypted
  "core_is_email_disabled_by_platform": false, // optional, but usually exists
  "core_is_sms_disabled_by_platform": false, // optional, but usually exists
  "core_user_gender": "MALE", // very optional
  "core_kyc_status": "VERIFIED" // optional
}

Note: these are the most essential fields that we usually see on the platforms. It is ok that your platform will not have some of them, but will have many more. Expose everything and provide documentation with explanation, we will map and aks questions whenever is needed

Payments - information about deposits and withdrawals

Example of event structure for deposit.

Pay attention to the "type" field, we usually see that in same topic Platform is reporting failed deposits, cancelled deposits, different statuses of withdrawals (requested, approved, completed, rejected, cancelled etc)

{
  "dt_finalized": 1678886400000, // required field! Example: March 15, 2023 12:00:00 PM UTC in milliseconds. This is the timestamp when the deposit was finalized.
  "ext_brand_id": "YourBrandId", // Could be int, string, uuid
  "user_ext_id": "f0e6e2e1-4797-4b75-9d62-ad964a4f05af", // Could be int, string, uuid
  "transaction_id": "dep_tx_123456789", // required field! Unique identifier for this specific transaction. Could be int, string, uuid.
  "type": "deposit", // int,string. required field to understand type of transaction
  "amount": 100.00, // required field! The amount of the deposit in the core_wallet_currency
  "core_wallet_currency": "EUR", // 3 symbols ISO. The currency of user.
  "payment_method": "CreditCard", // Optional. The method used for the deposit (e.g., "CreditCard", "PayPal", "BankTransfer" or any other string).
  "deposit_status": "COMPLETED",  // Optional. The status of the deposit (e.g., "COMPLETED", "PENDING", "FAILED").
  "deposit_code": "PROMO15",  // Optional,
  "provider_name": "ABO-GW24", // Optional

}

Casino bets/wins - information about bet and win transactions. Depending on your system architecture, there could be 2 types of events - bet and win, in other systems we see only one type of transaction "win" that is sent for each bet whenever its resolved, even with 0 winning.

Example of event

{
  "ext_brand_id": "YourBrandId", // Could be int, string, uuid
  "user_ext_id": "f0e6e2e1-4797-4b75-9d62-ad964a4f05af", // Could be int, string, uuid
  "transaction_id": "bet_tx_123456789", // required field! Unique identifier for this specific transaction. Could be int, string, uuid.
  "type": "win", // indicaator of transaction type - bet or win
  "bet_date": 1678886400000,
  "bet_amount": "1.00", // required field
  "win_amount": "0.00", // required field for "win" type of event
  "game_name": "20 Super Hot", // required field
  "game_category": "Slots",  // optional, but usually exists
  "game_provider": "EGT", // optional, but usually exists
  "bet_amount_real": "1.00", // the split of bet/win amounts to real and bonus money present in most of the platforms
  "bet_amount_bonus": "0.00",
  "win_amount_real": "0.00",
  "win_amount_bonus": "0.00",
  "game_vendor": "Amusnet", // optional, but usually exists
  "casino_game_ext_id": "00000004-0000-5000-9000-000000000012", // ID of game in the catalog. int, string or uuid
  "casino_game_type_ext_id": "00000000-0000-0000-0000-000000000001", // ID of game type in the catalog. int, string or uuid
  "casino_game_provider_ext_id": "00000005-dc86-47af-8013-c46b4c5105af" // ID of the game provider in the catalog. int, string or uuid
}

Important to note that all topics should be partitioned by user id. This ensures events for each user are processed in the correct order.

REST API

You can find attached a document giving a general idea of API-based integration.

26MB

smartico.ai - REST API.pdf

pdf

Note: this document is only given as an example and shouldn't be used as a final guide for integration; please contact your Success Manager for the exact document listing all events and properties specific to your product.

FAQ & General notes

What databases are supported for the data integration

We support MySql, PostgreSQL, MSSQL, Oracle, Clickhouse, Snowflake, BigQuery, MongoDB, Redshift, MariaDB.

Its important, that DB instance should allow at least 2 parallel connections. One will be fully dedicated to production data processing and one will be used whenever is needed for investigations.

What security measures are applied on the connectivity level between Smartico and the Operator data source

We support secured and non-secured connections and all existing mechanics of authorizations with RDMS or streaming solutions. We also provide fixed IPs that should be whitelisted to access your data sources. It is important to note that we are not supporting integrations via VPNs.

When working with the replica database, how often does Smartico load data?

Short answer - we are trying to load as often as possible.

The general logic is following:

1. we are loading recently updated user profiles, so we are sure that all users are reflected on Smartico side and its safe to load transaction data

2. we are loading deposits, after that withdrawals, then casino bets/wins and finally sport transactions

3. as soon as we are done, we are starting from point 1

In ideal scenario the whole cycle should complete multiple times during a minute, this way we are achieving close to real-time data integration.

Depending on your needs and architecture, this logic can be adjusted in the following way:

• if such approach is producing high load on the system, we can do a "wait" time after completing the cycle

• if you have tables that are updating periodically, e.g. once in a day, we can scan this table only on specific hours, so we don't track changes in such tables outside of hours when its not updating

What is preferable message format, partitioning, lag tracking approaches in streaming solution like Kafka/RabbitMQ?

We prefer JSON for serialization. When it comes to partitioning, it's really important to do it based on the user ID. This helps us keep the order of events straight for each user, which is crucial.

We always commit the offset for each partition, even if there's an error with a message (we'll log the error and move on). It would be really helpful though, if you also set up monitoring for your Kafka cluster. Things you'd want to watch out for are if there aren't any consumers reading from a topic or if the lag starts to get really big (say, 100,000 events or more). This helps us catch potential issues quickly.

What are required fields in messages for streaming solution?

Every message should include

• Original timestamp of the business event (date of deposit, bet, update of profile etc)

• ID of user (int, string, uuid)

• Brand ID (int, string, uuid) could be required in case your system is multi-tenant and same topic can contain data for users of different brands

• Unique ID of transaction (int, string, uuid)

And for every type of transaction there could be additional "required" fields specific for transaction, e.g.

• Deposit - amount is mandatory

• Bet - bet amount, game name and game id

• Win - bet amount, win amount, game name and game id

• Completed withdrawal - amount

• User profile - registration date, but in 99% of systems language code, user currency, account status, registration country. You can refer to the table above in this document

How the initial data load is happening?

In case of DB integration - we will load from your DB all users and all historical deposits and withdrawals. For casino bets/wins, we suggest to load data only "from now on".

In case of API or Kafka integration - you will need to push all user profiles, and historical deposits / widthdawals. Its important to note that we are not doing initial data import via CSV or in the way different from the main integration, this way we can be sure that data flow is always the same, no mater if we are loading historical data or processing ongoing data.

It's also importat for integrated system to re-push data in future on demand, this could be necessary in case of business wan't to introduce more data field in user profile.

Is Smartico handling de-duplication of data?

Depending on the size (amount of transactions) of your operation we can enabled "short window deduplication" in the size of 2 minutes, this means that if distance between accidentally sent duplicated events and distance in time between them is not more then 2 minutes, the duplicated event will be skipped. Note that for operations with big amount of bets, such option is not available

How Smartico is handling realtime aggregations, like "Total deposit amount"?

While we have a logic of running aggregations (total deposit, total widthrawal, bets count etc), from our expirience we are strongly recommending to have such aggregations done on platform side. We found out that running aggregations on data coming in realtime could be very fragile and may miss some business aspects that are not known on Smartico side. Possible reasons to be not accurate

• The deposit event was sent twice - as result total deposit amount and count are not correct

• Deposit was not sent or sent in wrong format - as result its skipped and totals are not correct

• There was internal process of rolling back deposit that was not reflected to Smartico - total are not correct.

What we recommend as an approach:

• if your system can do realtime aggregations together with sending event to us, this will be best solution. In such case with event bet/deposit/withdrawal you can provide aggregations that are changed and we will reflect them

• If you have analytical DB (e.g. BigQuery, Snowflake or any other), in which you can calculate totals on scheduled basis, - we can connect to your DB and reload aggregations automatically whenever they are calculated
